3D Glassfiber Fabric Successfully Used in Double Wall Oil Tank
3D Glassfiber Fabric Successfully Used in Double Wall Oil Tank
How to test leakage in oil tank buried underground? The answer is to use 3D glassfiber fabric to make double wall for oil tank. Now it’s popularly used in new tank of USA and relining of old tanks in Europe.
FEATURES
lLight weight, High stiffness
lSimple and effective lamination process
lOutstanding performance in resistance to delamination
lEasy to make an angle curve
lHollow structure
lHigh design-versatility
APPLICATIONS
double wall storage tanks, chemical storage tanks, aircraft, railway, automotive, decorative wall panels, billboard, industrial roofing and various applications in different fields
Technical Data Sheet | |||||||||||
Fabric type | E3P | E5P | E8P | E10P | E12P | E15P | E18P | E22P | |||
Thickness | |||||||||||
Core | mm | 3.0 | 5.0 | 8.0 | 10.0 | 12.0 | 15.0 | 18.0 | 22.0 | ||
Face | mm | 0.4 | 0.4 | 0.4 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | ||
Weight | |||||||||||
Fabric | kg/m2 | 0.78 | 0.83 | 0.92 | 1.34 | 1.42 | 1.51 | 1.58 | 1.74 | ||
Laminate | kg/m2 | 1.65 | 1.76 | 1.95 | 2.84 | 3.01 | 3.20 | 3.35 | 3.60 | ||
Mechanical properties | |||||||||||
Compressive strength | ASTM 365 | N/mm2 | Average | 11.2 | 3.04 | 2.25 | 1.01 | 0.941 | 0.871 | 0.527 | 0.421 |
Shear strength | ASTM 273 | N/mm2 | Average | 4.65 | 1.35 | 1.42 | 0.352 | 0.338 | 0.249 | 0.188 | 0.161 |
Bending strength | ASTM 393 | N/mm2 | Average | 144 | 89.8 | 71.7 | 47.4 | 40.2 | 21.7 | 18.5 | 16.8 |
Thermal property | |||||||||||
Thermal conductivity | GB/T10294-1988 | W/(m.k) | 0.07 | 0.07 | 0.07 | 0.08 | 0.08 | 0.08 | 0.08 | 0.08 |

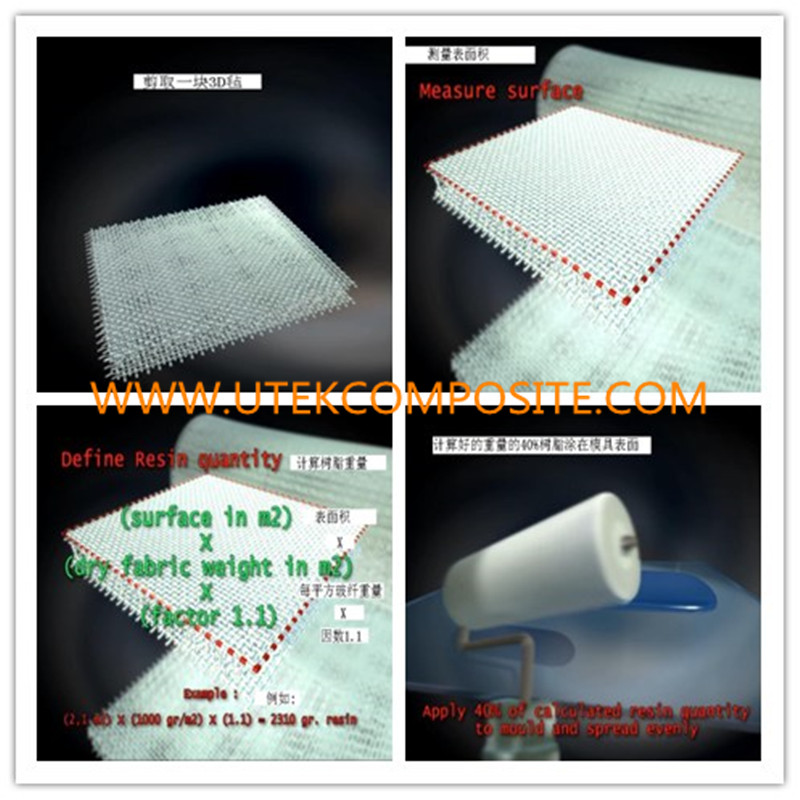

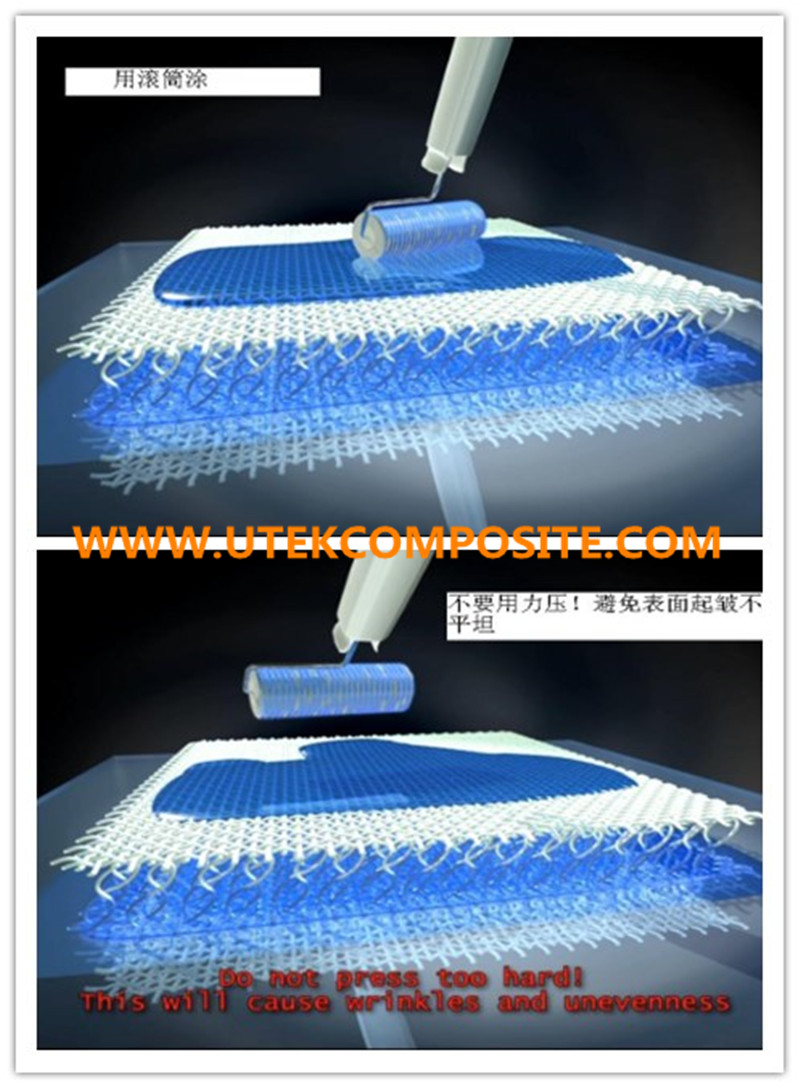

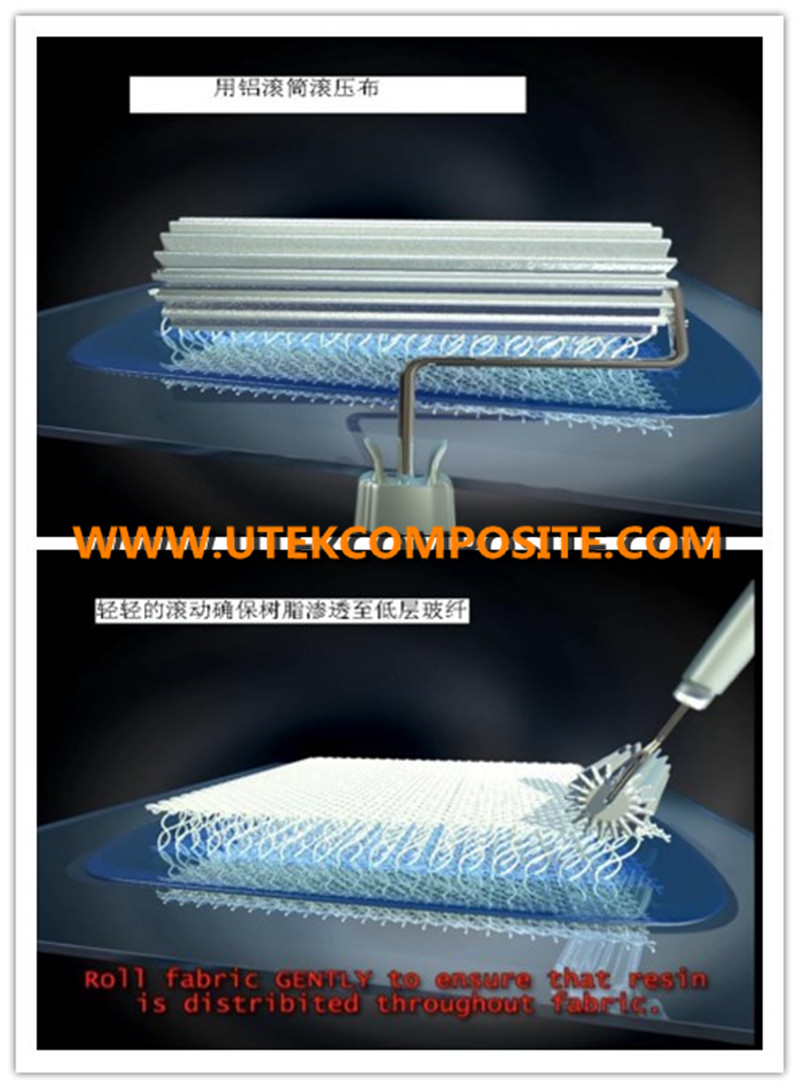

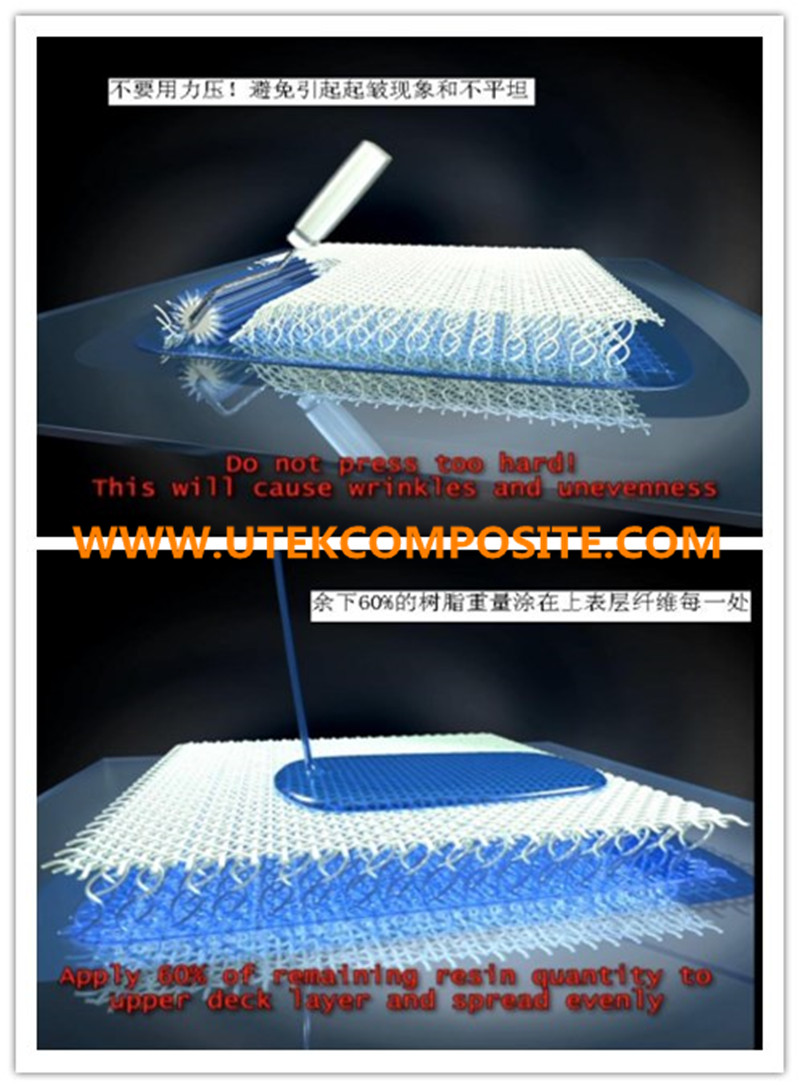

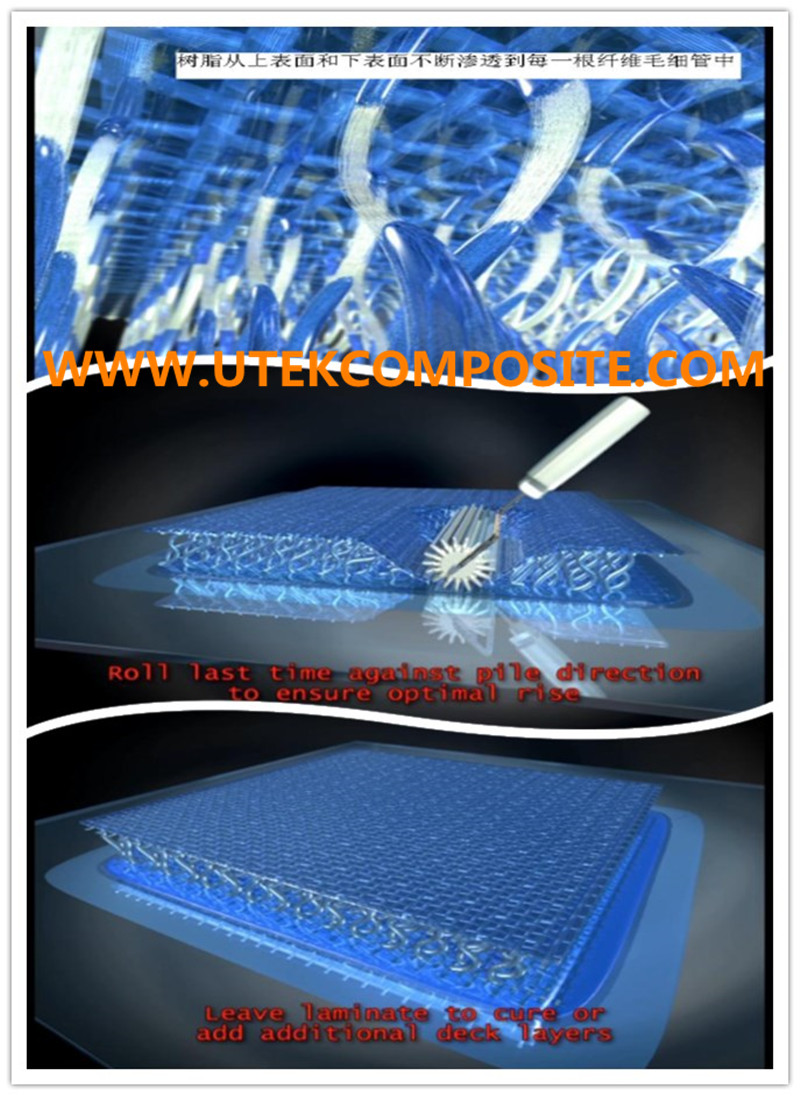

APPLICATION GUIDE:
