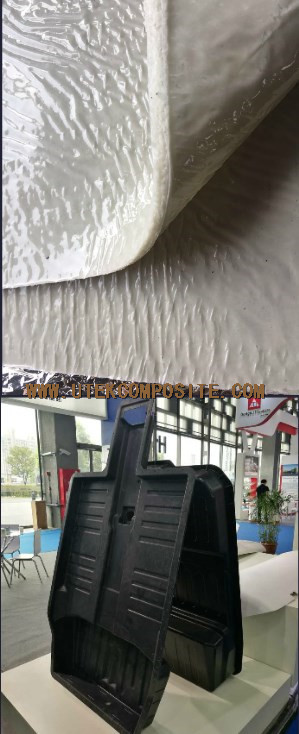

Low Density Fire Retardant Sheet Moulding Compound for Automotive Parts
  2017/12/08| View:919

The formula is specially designed for products requiring low density, fire retardant and high strength.
The resin, thickening agent, release agent, filler, mixed high temperature curing agent, coating in the 2 film, the glass fiber filament after cutting machine cut into 25mm short strips, sprinkle in the coating resin paste film, the 2 layer composite thin film, from Finn and American Fram, Inc (www.Finnandfram.COM) kneading professional SMC sheet unit import, the glass fiber soaked through automatic packaging, folding machine, and then in the drying room temperature through thickening time, achieve the molding viscosity requirements, namely into finished products. Appearance: Zig-zag package, outside the aluminum film.



 SMC5005D(Low Density)

No

Item

Unit

Value

Testing standard

1

Density

g/cm3

1.48

GB1463-05

2

Water absorption

mg

50

GB1462-05

3

Moulding   shrinkage

%

0.05

GB/T15568-2008

4

HDT

200

GB1634-79

5

Fiberglass content

%

26

GB/T15568-2008

6

Flexural strength

MPa

140

GB1449-05

7

Tensile   strength

MPa

55

GB1447-05

8

Impact strength

KJ/m2

55

GB1451-05

9

Barcol hardness

/

41

GB/T3854-2005

10

Fire   resistance

grade

V0

UL94
