40g/m2 fiberglass surface tissue for the panel which is for refrigeration semi-trailer.
2017/08/21| View:928

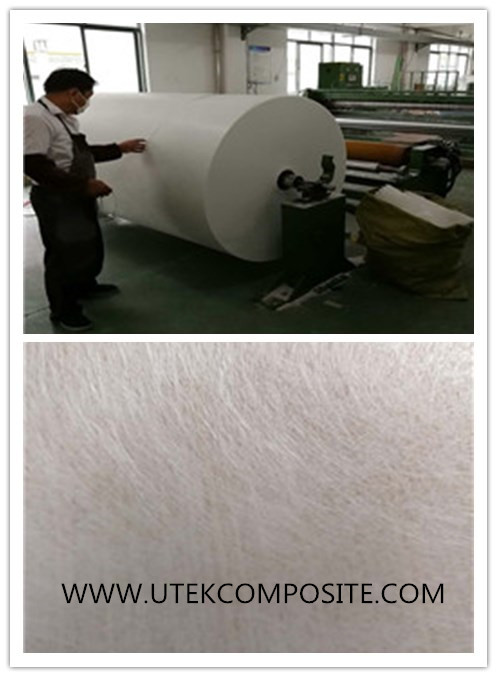

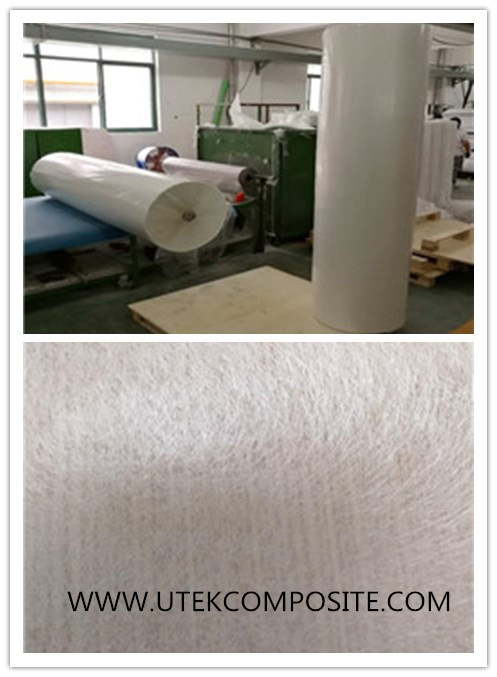

Fiberglass surface tissue 40g/m2, different width is available like 2.1m or 2.6m, 0.35mm thickness. Good strength and fast wet out.
CHANGZHOU UTEK COMPOSITE CO., LTD.
Test Certificate
Test Item | Unit | Standard | Test Result | Result |
Area Weight | G/㎡ | 40±3 | 41.85 | |
Binder Content | % | 21±3 | 20 | |
Thickness | mm | 0.41±0.03 | 0.4 | |
Tensile Strength MD | N/ 50 mm | ≥136 | 175 | |
Tensile Strength CD | N/ 50 mm | ≥90 | 114 | |
Air permeability | M3/m2.s | ≤4.5 | 4.4 | |
Width | mm | 2100±3 | 2100 | |
According to Criterion | Q/320412 CXB003--2014 | |||
Color | PASS |
