Methyl tetra-Hydro Phthalic Anhydride(MTHPA) has been used in the curing agents for epoxy resins, solvent-free paints, laminated boards epoxy adhesives and so on.

When used in the curing agent for epoxy resins, there are many excellent performances such as the long-term storage at room temperature, low freezing point, low volatility and low toxicity. Also widely used in motors, dry-type transformers, high voltage switches, transformers, line-output transformers, appliances capacitors, integrated circuits impregnation, casting and winding

INTRODUCTION

Synonyms:  Methyltetrahydrophthalic anhydride; Methyl-4-cyclohexene-1,2-

dicarboxylic anhydride; MTHPA

Structure Formula:         C₉H₁₀O₃

Chemical structure:

PRODUCT SPECIFICATION

Appearance             Light Yellow Liquid

Anhydride Group Content     ≥41.0%

Volatile Content              ≤1.0%

Free Acid                        ≤1.0 %

Freezing Point                ≤-15℃

Viscosity(25℃)              30-60 mPa·S

PHYSICAL AND CHEMICAL CHARACTERISTICS

Physical State(25℃):                 Liquid

Appearance:                       Light Yellow Liquid

Molecular Weight:                  166.17

Specifical Gravity(25/4℃):     1.20±0.005

Water Solubility:                   decomposes

Solvent Solubility:          Slightly Soluble: petroleum ether Miscible: benzene,

toluene, acetone, carbon tetrachloride, chloroform, ethanol,

ethyl acetate

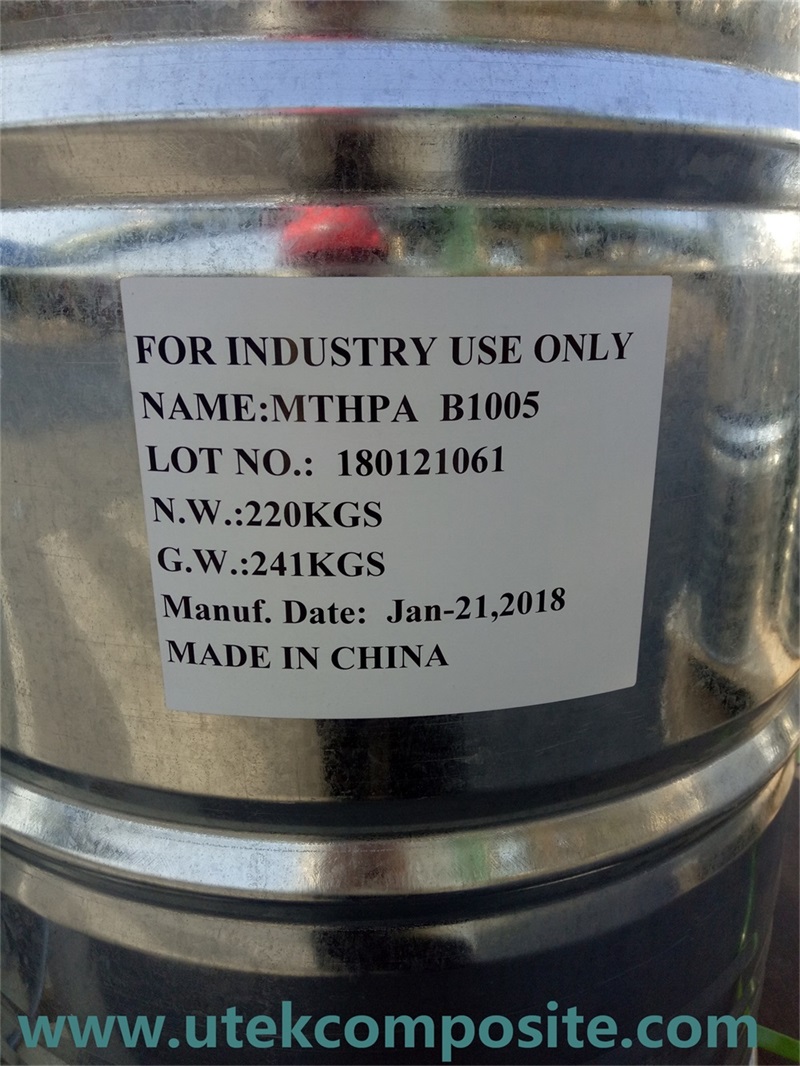

PACKING         Packed in 25 kg plastic drums or 220kg iron drums or isotank

STORAGE                 Store in cool, dry places and keep away from fire and moisture
