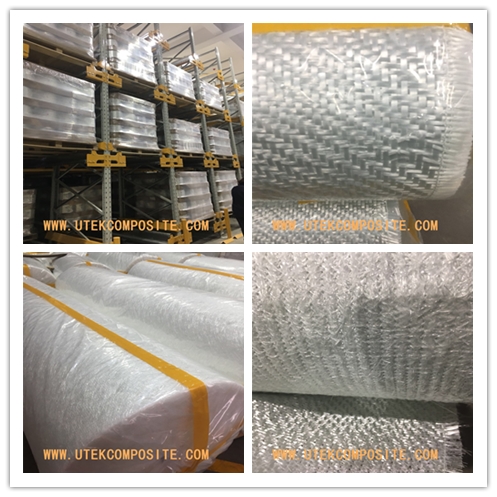

Fiberglass combo mat
2018/08/03| View:852
It's made of woven roving and chopped strandmat bonded with stitching polyester thread.It's ideal for application such as boat hulls,automotive housing and doors,cooling apparatus and structural shapes.
Product property:
1)No any binder,good compatible with Multi-Resin
2)Simplify the moulding process
3)Improve producing efficiency and decrease cost
The normal specification is woven roving 200,300,400,500,600,800 stitched with CSM 225,300,450,600,900,and the normally width is 1250mm(50").
Now the producing of combo mat is a little busy,in order to deliver your order in time,pls contact us ASAP,we will supply the best service to you.
Product No. | (g/m²) Overall Density | (g/mº) Woven Roving Density | (g/m²) Chop Density | (g/m²) Polyester Yarn Density |
WRM200/150 | 359.5 | 200 | 150 | 9.5 |
WRM300/300 | 609.5 | 300 | 300 | 9.5 |
WRM500/300 | 809.5 | 500 | 300 | 9.5 |
WRM500/450 | 959.5 | 500 | 450 | 9.5 |
WRM600/300 | 909.5 | 600 | 300 | 9.5 |
WRM600/450 | 960.71 | 600 | 450 | 10.71 |
WRM800/300 | 1110.71 | 800 | 300 | 10.71 |
WRM800/450 | 1260.71 | 800 | 450 | 10.71 |
WRM1808 | 896.14 | 612 | 274.64 | 9.5 |
WRM1810 | 926.65 | 612 | 305.15 | 9.5 |
WRM1815 | 1080.44 | 612 | 457.73 | 10.71 |
WRM2408 | 1132.35 | 847 | 274.64 | 10.71 |
WRM2410 | 1162.86 | 847 | 305.15 | 10.71 |
WRM2415 | 1315.44 | 847 | 457.73 | 10.71 |
WRM2430 | 1762.71 | 847 | 900 | 15.71 |
