High strength fire retardant V0 grade sheet molding compound
SMC5342 is a sheet moulding compound based on unsaturated polyester resin. The product is glass fibre reinforced and contains mineral fillers. The material is compression moulded in heated steel moulds. It is recommended to work with chrome plated tools. It does not contain any halogens nor any candidates from the REACH SVHC list.
General purpose SMC for electrical applications. Fire retardancy: UL 94, V-0 (3 mm)

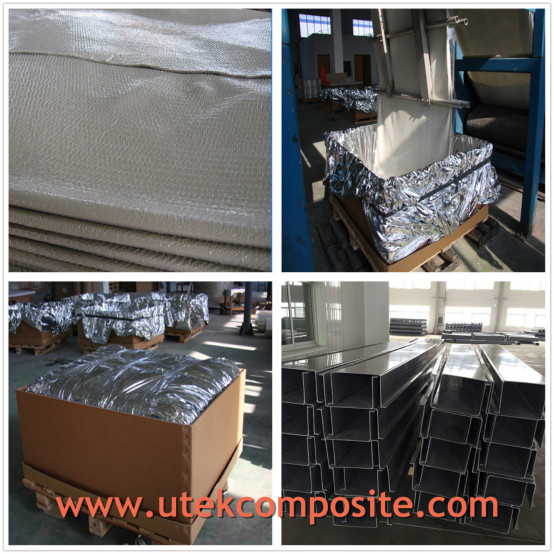

SMC5342 is produced in a standard width of 1000 mm. It is supplied on rolls holding up to 1500 kg. It is possible to have it folded and packed in cardboard/wooden crates. In any case a styrene barrier film wrapping is being used. For alternative packaging please contact our technical service team. Available in all colours.
Technical Data:
Features and main uses:
5342-2 Pressed SMC sheet for automotive parts. The pressed product has the characteristics of extremely high mechanical strength, low shrinkage, no grinding, high heat distortion temperature and so on. Its performance is as follows:
Sheet performance:
Item | Unit | Index | Test Method |
Appearance | Uniform color, no discoloration impurities, good fiber impregnation | HR B-80116 | |
Area weight | Kg/m2 | 2.3-2.7 | HR D-61000 |
Indentation hardness | -- | 100-500 | HR D-61000 |
The measured performance of pressed products:
Item | Unit | Index | Test Method |
Specific gravity | -- | 1.65-1.85 | GB/T1463 |
Molding shrinkage | % | ≤0.1 | HRD-61404 |
Flexural strength | MPa | ≥280 | GB/T1449 |
Flexural modulus of elasticity | GPa | ≥12.0 | GB/T1449 |
Tensile strength | MPa | ≥150.0 | GB/T1447 |
Izod impact strength | KJ / m 2 | ≥100.0 | Cantilever beam |
Flame retardant rating | -- | V0 | UL94 3mm |
Heat distortion temperature | ºC | ≥240 | GB/T1634 |
Recommended pressing process:
Pressing time: In principle, the product thickness is about 1min per 1mm, which can be adjusted according to the actual situation
Pressing temperature: front side (bright side of product) / back side: 146-150 ºC / 138-142 ºC. (Note: This temperature is the mold surface temperature.)
Molding pressure: higher than 100Kgf / cm 2.
Storage conditions and shelf life:
SMC should be sealed in aluminized film and stored in a cool and ventilated place below 25 ° C. Sheet storage period is two months from the date of production
Related Product Safety Data (SDS):
Before using this product, please be sure to read the SDS of this product.
